PRE ORDER!! Abarth 500 All Model Gauge Digital Manometer OBD Plug & Play 80mm

Mid September arrive!!

By operating through the vehicle's CAN bus, it is no longer necessary to install additional wiring to monitor the actual turbo pressure during track days; thanks to the real-time data coming directly from the ECU and a 2.5 bar scale, you get the information you need simply by connecting it to the OBD port.

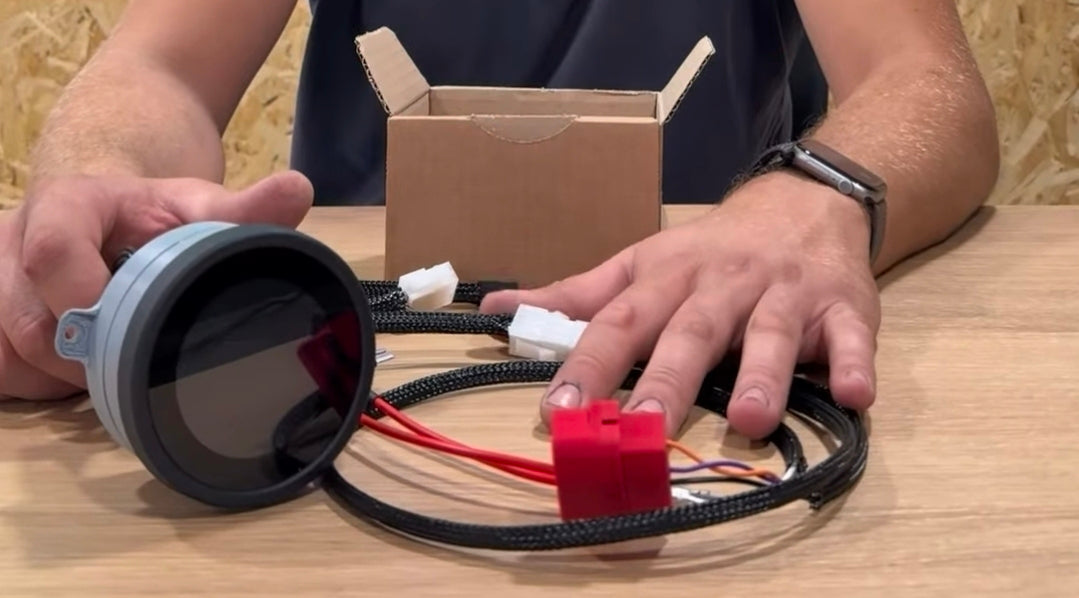

STANDARD PACKAGE

This connection also allows access to other key parameters without additional hardware, such as:

– Actual turbo pressure (0–2.5 bar), displayed via a needle just like the original gauge;

– Coolant temperature (scale and numerical value);

– Intake air temperature (scale and numerical value);

– Battery voltage (scale and numerical value);

– Torque percentage (scale and %);

– DTC error code reading through the menu;

Easy to install and configure. For the first time, no adapters or modifications are required; simply remove the original gauge and replace it with the new one, connecting it to the OBD port using the supplied wiring harness, without the need for alterations.

It can be removed at any time.

It does not require initial configuration to start working; everything comes pre-programmed, so you just have to choose what information to display and select the background color from the menu. High-resolution IPS touchscreen.

In addition to fitting perfectly into the circular housing of your car's gauge, the high-resolution IPS screen offers excellent brightness, vivid colors and, most importantly, visibility from any angle.

The brightness also adjusts automatically when the headlights are turned on.

* Wide range of accessories available. Once you experience the usefulness of having a complete view of your engine's performance during track sessions, you may want to go further; thanks to the available accessories, you can add:

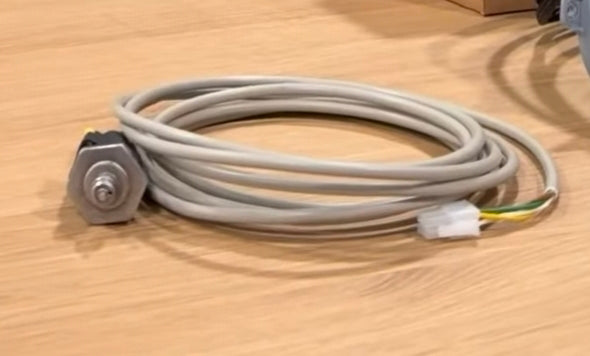

– Oil pressure and temperature monitoring using a single sensor;

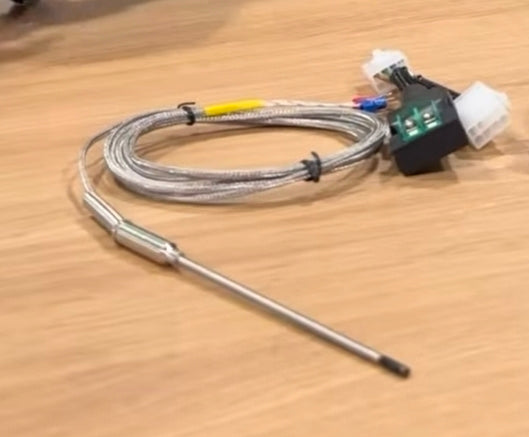

– EGT (exhaust gas temperature) monitoring using a K-type thermocouple;

– AFR (air-fuel ratio) monitoring using a wideband probe;

– Interior ambient lighting control directly from the touchscreen;

All accessories come pre-wired and ready to connect, without the need for modifications. Always updatable.

The device comes complete as standard, but if you want to add new features or graphics, or simply customize the home screen, there is no problem.
